Our Facility

CNC Turning Machine

CNC Lathes are machine tools where the material or part is clamped and rotated by the main spindle, while the cutting tool that work on the material, is mounted and moved in various axis.
A simple CNC Lathe operates on 2-axis and the tool is located in a fixed position at 8 to 12 station turret. The rotating action of the part is called “turning”, hence certain types of CNC Lathes are called CNC Turning Machines.

Type                                             Tolerance

Linear Dimension                        +/- 0.025 mm (+/- 0.001 inch)

Hole Diameter                              +/- 0.025 mm (+/- 0.001 inch)

Shaft Diameter                             +/- 0.025 mm (+/- 0.001 inch)

Part Size Limit                              Ø42*300 mm ( 1.7*12 inch)

VMC Machine

Precision and efficiency are essential in modern manufacturing. Vertical Machining Centers (VMCs) are CNC machines with a vertically oriented spindle, widely used in industries like automotive, aerospace, medical, and die-mold manufacturing. VMCs combine automation, tool flexibility, and digital controls to deliver consistent quality, faster production, and reduced downtime—making them ideal for both prototyping and mass production.

Type                                             Tolerance

Linear Dimension                        +/- 0.025 mm (+/- 0.001 inch)

Hole Diameter                             +/- 0.025 mm (+/- 0.001 inch)

Shaft Diameter                             +/- 0.025 mm (+/- 0.001 inch)

Part Size Limit                              780*500*350 mm (30*19*14 inch)

Gedee Weiler Turret Lathe

Weiler turret lathes, are precision metalworking machines known for versatility, accuracy, and productivity, featuring indexable tool turrets for quick, automated tool changes to perform multiple operations (turning, threading, drilling) in a single setup, ideal for mass production and complex parts.

Type 1 (M/c: RDU 260/28)                Tolerance

Linear Dimension                        +/- 0.1 mm (+/- 0.003 inch)

Hole Diameter                             +/- 0.05 mm (+/- 0.001 inch)

Shaft Diameter                             +/- 0.05 mm (+/- 0.001 inch)

Part Size Limit                              20*300 mm (0.78*12 inch)

Type 2 (M/c: RDU 260/38)               Tolerance

Linear Dimension                        +/- 0.1 mm (+/- 0.003 inch)

Hole Diameter                             +/- 0.05 mm (+/- 0.001 inch)

Shaft Diameter                             +/- 0.05 mm (+/- 0.001 inch)

Part Size Limit                              25*300 mm (0.78*12 inch)

List of Machines

CNC Turning Centre
(LMW Smart ultra)

Chuck 200 mm
8 Station
X Axis 155
Z Axis 420
Max turn dia 290 mm, Length 325
Between centre 434 mm
Hole through spindle 53 mm
Position X/Z: 0.010/0.010
Repeatability: ± 0.003

VMC (AMS / MCV 450)

3 Axis
Bed 1000 x 450 mm
X 800 mm
Z 500 mm
Y 450 mm
Number of Tools 20
Position X/Z/Y: 0.010/0.010/0.010
Repeatability: ± 0.005

CNC Turning Centre (Macpower Servo 100)

Chuck 165 mm
Linear Tooling 4 ea
X Axis 500
Z Axis 280
Max turn dia 165 mm, Length 280
Boring Bar capacity 32 mm
Position X/Z: 0.050/0.050
Repeatability: ± 0.030

Weiler Turret Lathe

RDU 260/28 – 2 Machines
RDU 260/38 – 2 Machines
6 Station
Max turn Length 300
Speed: 125 – 2800 rpm

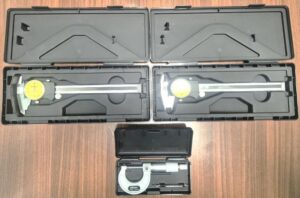

Inspection System

Surface Table

Vernier Caliper

Dial Vernier Caliper

Digital Vernier Caliper

Micrometer

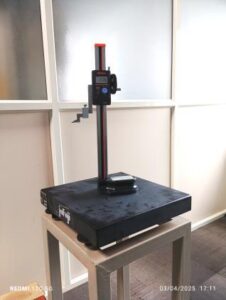

Digital Vernier Height Gauge

Profile Projector

Dial Stand with Lever dial

Double Ended Thread Plug gauge

Double Ended Plain Plug Gauge

Thread Ring Gauge

Thread Pitch Gauge

Feeler Gauge

Radius Gauge

Micro finish comparator

CNC Turning Centre
(LMW Smart ultra)

▪ Chuck 200 mm
▪ 8 Station
▪ Max turn dia 290 mm, Length 325
▪ Between centre 434 mm
▪ Hole through spindle 53 mm

VMC (AMS / MCV 450)

▪ 3 Axis
▪ Bed 1000 x 450 mm
▪ X 1000 mm
▪ Z 500 mm
▪ Y 450 mm
▪ Number of Tools 20

CNC Turning Centre
(Macpower Servo 100)

▪ Chuck 165 mm
▪ Linear Tooling 4 ea
▪ Max turn dia 165 mm, Length 280
▪ Boring Bar capacity 32 mm

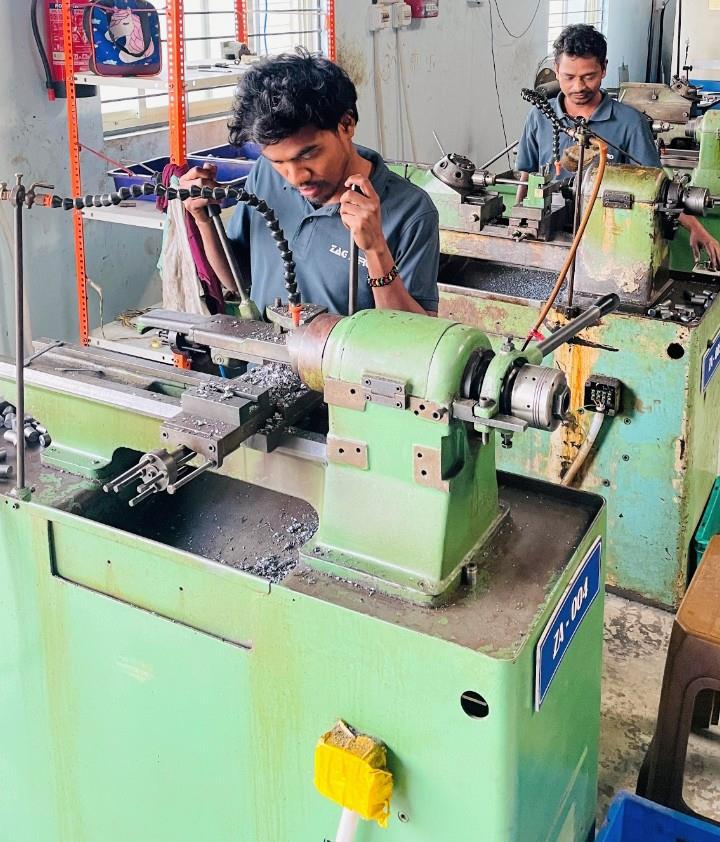

Weiler Turret Lathe

RDU 260/28 – 2 Nos
RDU 260/38 – 2 Nos
▪ 6 Station
▪ Max turn Length 300
▪ Speed: 125 – 2800 rpm

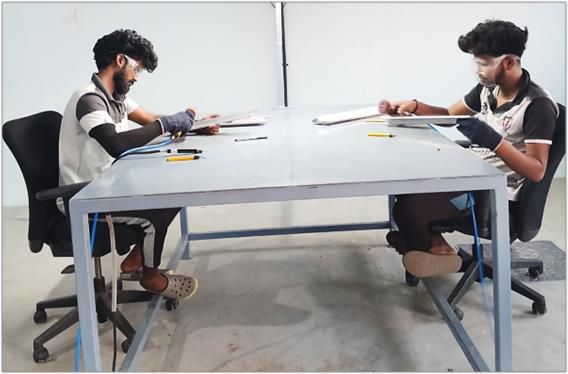

Buffing Station

Precised tools to achieve extreme finishing


Inspection System
